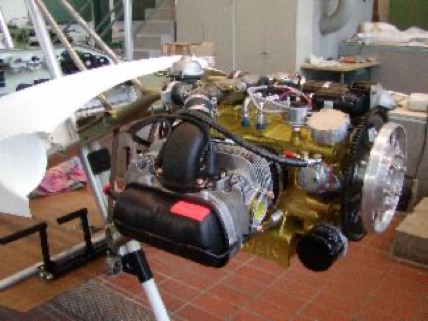

Sauer S2200UL Microlight Engine
The initial design for the four cylinder four stroke air cooled “boxer” engine was undertaken by Dr Ferdinand Porsche. The Volkswagen Type 1 engine, used in the VW Beetle and the VW Bus, has had one of the longest continuous production runs of any engine built to date.
Sauer Aircraft Engines was founded in 1978 with the intent of developing and manufacturing their own aircraft engine, based on the VW design. Continuing advances led to the development of a series of aircraft engines starting with the S1800 all the way to the S2500. Hundreds of these engines have been produced since, and can be found not only in aircraft, but also in other applications.
The Sauer S2200 UL is based on the certified S2100 and is considered to be one of the “simplest” aircraft engines, with few problems known to exist. The engine has almost no AD’s, Advisories or any special maintenance requirements. This engine has a TBO of 2000 hours, along with a 2 year guarantee, as well as the possibility of extending the guarantee to 5 years and 500 hours. The S2200 UL sounds like a “real” aircraft engine, with very little vibration. The directly driven crankshaft can turn the propeller up to 3200 rpm, however the standard rpm has been reduced to 2600. This makes the engine quieter, and reduces the fuel consumption dramatically. The maximum torque of 215 Nm is reached at around 2600-2800 rpm.
Below we have included a small comparison to the Jabiru 2200 which has similar specifications.
Jabiru 2200 S2200UL
--------------------------------------------------------------------------------------------------------------------------------
Type 4 cylinder 4 stroke engine 4 cylinder 4 stroke engine
Displaceme 2210 cm³ 2234 cm³
Compression 1:8 1:8,2
Weight (complete) 63 kg 69 kg
Cylinders. 4130 steel Cast steel GG55
Fuel consumption 12 - 15 l/h 10 - 14 l/h
EGT max. 700°C max. 750°C
TBO 1000 hours 2000 hours
(Cylinder head swop) (after a 1600 hour check)
Max. RPM 3300 rpm 3200 rpm
Max. Torque 200 Nm @ 2600 rpm 215 Nm @ 2700-2800 rpm
(= 71 hp) ( = 67 hp)
Leistung 80 hp @ 3300 rpm 85 hp @ 3200 rpm
Disclaimer: this information is based on type certificates and other sources. The information is subject to change at any time.
